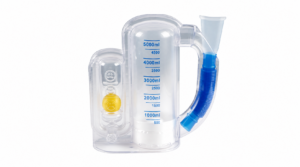

Sunflos LB1813 Volumetric Incentive Spirometer
Simple and Effective Breathing Exercise for Lung Expansion
The Sunflos LB1813 Volumetric Incentive Spirometer is a handheld breathing exercise device designed to encourage patients to take slow and deep breaths.
It provides a clear volumetric guideline during breathing exercises and may be used as part of respiratory recovery and lung expansion exercises following surgery or lung illness, according to clinical direction.
Its compact and ergonomic design combines a main chamber, adjustable marker, piston, inspiratory indicator ball, inhalation tubing and mouthpiece in one practical respiratory exercise system.
Key Features
- Volumetric Breathing Exercise: Provides a visible volume guide during deep inhalation
- Adjustable Target Indicator: Allows a target level to be set for breathing exercises
- Clear Volume Markings: Easy-to-read graduations help users monitor inspiratory performance
- Inspiratory Indicator Ball: Helps encourage an appropriate rate of inhalation
- Slow Deep-Breathing Guidance: Designed to encourage controlled, deep inspiration
- Flexible Inhalation Tubing: Connects the mouthpiece to the main breathing chamber
- Integrated Mouthpiece: Designed for convenient patient use
- Compact Design: Easy to handle and position during respiratory exercises
- Two Volume Options: Available in 3000 mL and 5000 mL configurations
Designed for Breathing Exercise
The Sunflos LB1813 is designed to encourage patients to inhale slowly and deeply.
The piston rises inside the main chamber during inhalation, providing visual feedback of the inspired volume.
The indicator ball helps the user maintain an appropriate inhalation rate while performing the breathing exercise.
Adjustable Target Indicator
An adjustable marker on the main chamber provides a visual target for the patient’s breathing exercise.
This allows a target volume to be identified according to the patient’s prescribed respiratory exercise programme and clinical guidance.
Inspiratory Indicator Ball
The device includes a dedicated inspiratory indicator ball.
During inhalation, the yellow floating ball and surrounding guideline provide visual feedback to help the patient maintain a controlled breathing rate.
Clear Volumetric Scale
The main chamber incorporates clear and legible volume markings, allowing the patient and healthcare professional to observe the approximate inspiratory volume achieved during the exercise.
Depending on the selected model, the system is available with a maximum volume of either 3000 mL or 5000 mL.
Main Components
- Main chamber
- Adjustable marker
- Piston
- Inspiratory indicator ball
- Inhalation tubing
- Mouthpiece
Material Information
| Component | Material |
|---|---|
| Main Chamber | PS |
| Marker | PE |
| Piston | PE |
| Indicator Ball | PP |
| Inhale Tubing | PP |
| Mouthpiece | PP |
Available Models
| Catalogue Number | Description | Packaging |
|---|---|---|
| LB181301 | Volumetric Incentive Spirometer – 3000 mL | 1 pc/box |
| LB181302 | Volumetric Incentive Spirometer – 5000 mL | 1 pc/box |
General Operating Principle
The device is held in an upright position and used with the supplied inhalation tubing and mouthpiece.
During a slow, deep inhalation, the piston rises inside the main chamber while the inspiratory indicator provides visual feedback about the breathing rate.
The patient can observe the maximum volume achieved and perform repeated breathing exercises according to instructions provided by healthcare professionals.
